제품 상세 정보:
|
|
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Sanxin |
| 인증: | ISO9001 |
| 모델 번호: | SX-2280 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 1PC |
| 가격: | 협상 가능 |
| 지불 조건: | 신용장, 티/티 |
| 공급 능력: | 10000 PC/월 |
|
상세 정보 |
|||
| 기판: | 초미립자 텅스텐 카바이드(WC 입자 크기 ≤0.5μm) | 경도: | HRA 89 – 93 |
|---|---|---|---|
| 가로 파열 강도: | ≥2800N/mm² | 코발트 함량: | 6% – 12% (인성/내마모성에 맞게 조정 가능) |
| 프로필 정확도: | ±0.001mm | 최소 절단 직경: | Ø0.3mm |
| 코팅(옵션): | TiAlN/AlTiN/TiSiN/다이아몬드 | ||
제품 설명

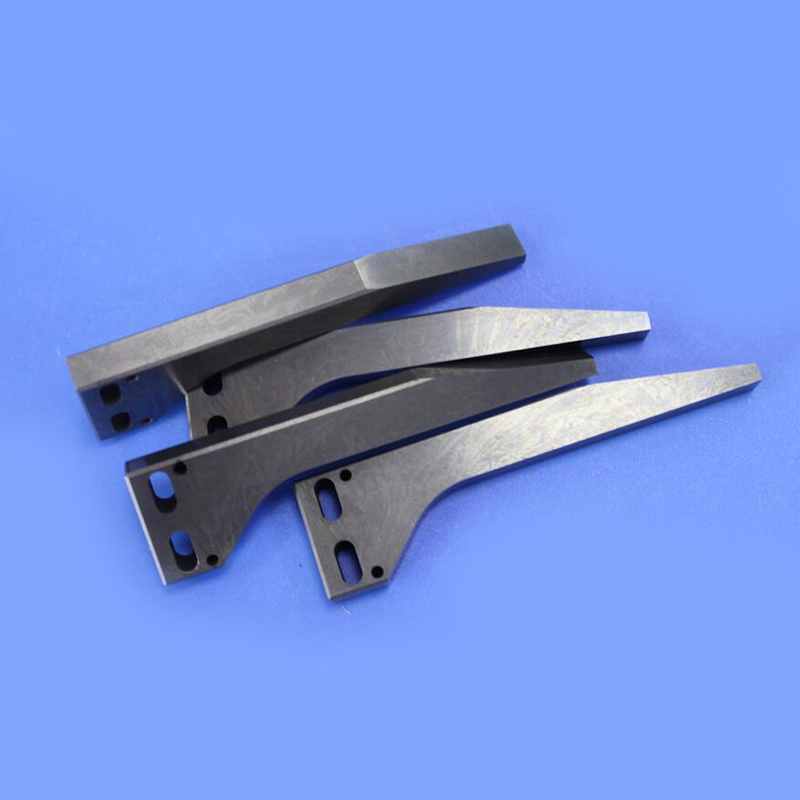

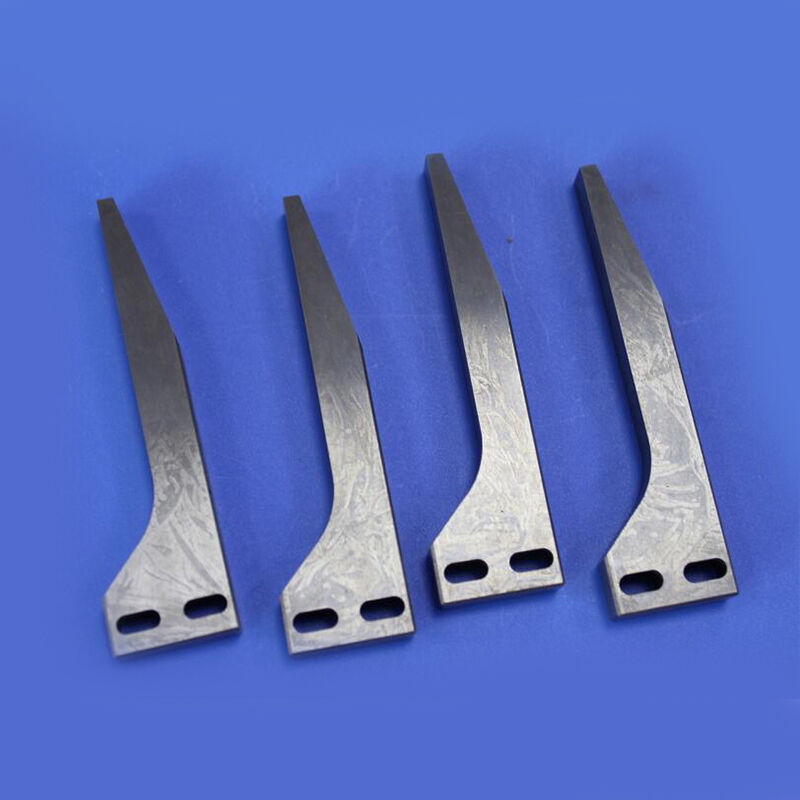

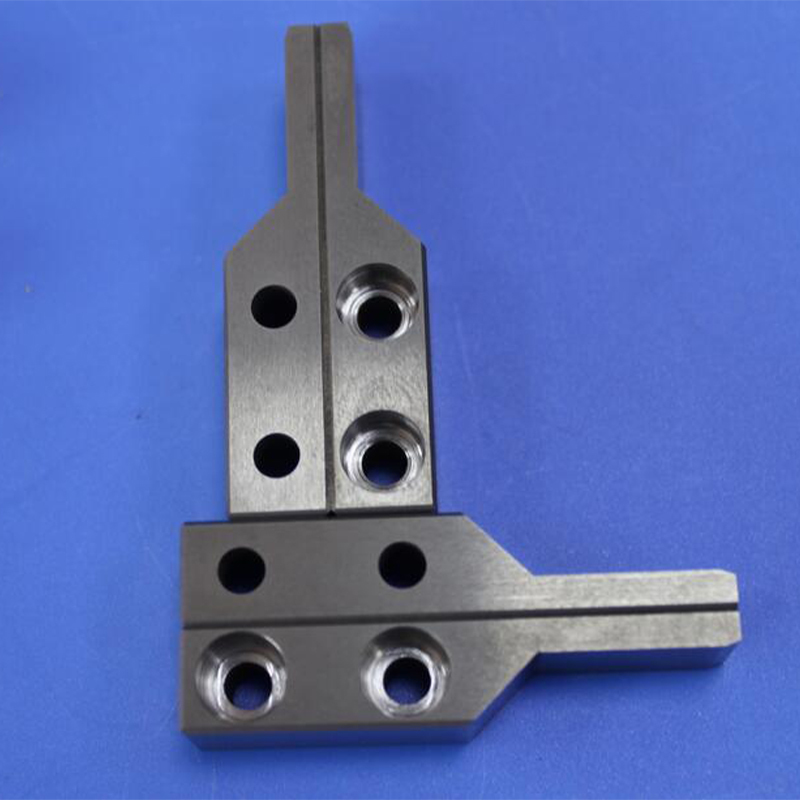

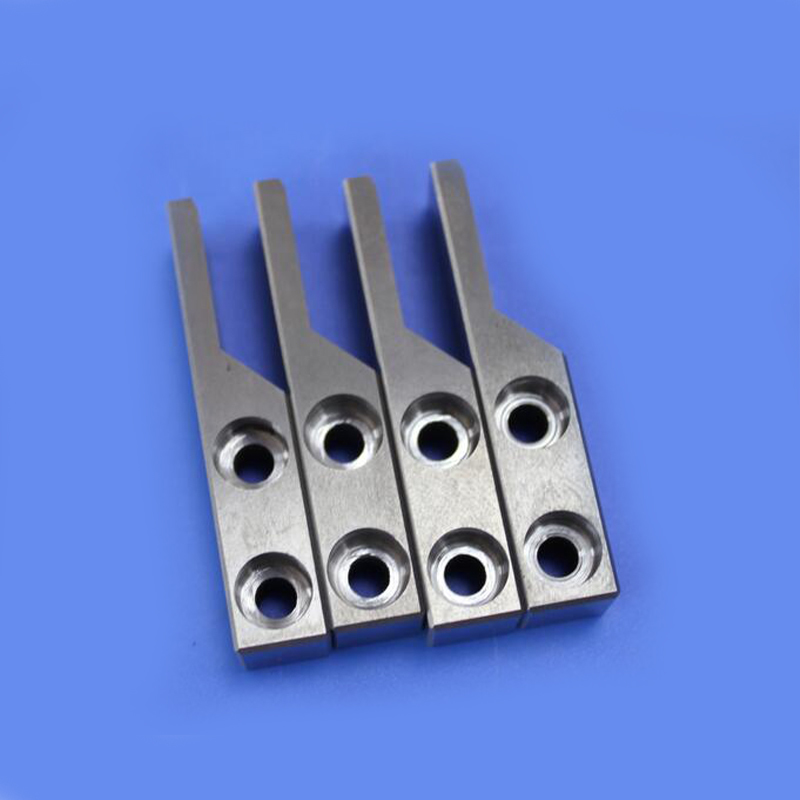

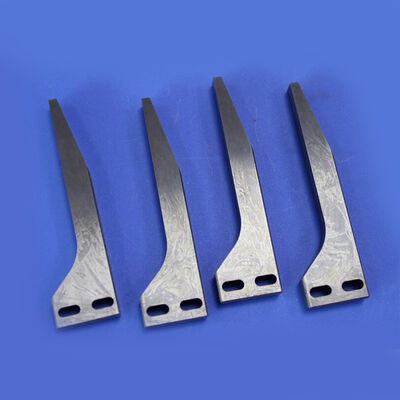

Custom Tungsten Carbide Special-Shaped Tools
When standard tools cannot meet your special machining requirements, we offer fully customizable tungsten carbide special-shaped tools. From step form cutters to dovetail cutters, from small-diameter deep-groove tools to combined step tools — we provide targeted solutions for hard materials, complex contours, and restricted spaces.
Product Introduction
Tungsten carbide special-shaped tools are made from ultra-fine grain tungsten carbide substrate and precision-ground on 5-axis CNC tool grinders, suitable for milling, turning and form cutting operations. Tool shapes are manufactured strictly according to customer drawings or samples — no need to compromise with standard tool inventory.
Whether for one-off prototyping or batch production, we guarantee profile accuracy of ±0.005mm and consistent batch-to-batch stability.
Key Advantages
|
Advantage |
Description |
|
Custom-made to drawings |
Accepts CAD drawings, 3D models or scanned samples. No MOQ restriction. |
|
High-hardness material machining |
Capable of stable cutting on HRC 50-65 hardened steel, die steel, stainless steel, titanium alloys, superalloys. |
|
Complex contours in one pass |
Reduces tool changes and operations, improves efficiency and accuracy. |
|
Extended tool life |
Tungsten carbide wear resistance is 5-20x that of HSS — ideal for mass production. |
|
Optional coatings |
TiAlN / AlTiN / TiSiN / Diamond coating — matched to your application. |
Customizable Tool Types
Applicable Work Materials
Typical Applications by Industry
|
Industry |
Typical Parts |
|
Precision molds |
Stamping dies, injection molds, casting gate trimming |
|
Automotive components |
Steering knuckles, brake discs, engine parts |
|
3C electronics |
Phone frames, buttons, housing chamfers |
|
Aerospace |
Superalloy structural components |
|
Medical devices |
Bone plates, bone drills, surgical instruments |
Customization Process
