제품 상세 정보:
|
|
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Sanxin |
| 인증: | ISO |
| 모델 번호: | SX1300 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 2 |
| 배달 시간: | 5-30 일 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
|
상세 정보 |
|||
| 높은 경도: | HRA92 | 카테고리: | 텅스텐 카바이드 가공 |
|---|---|---|---|
| 사용자 정의 옵션: | 맞춤형 모양, 크기 및 등급 이용 가능 | 화학적 불활성: | 높은 |
| 탄성률: | 530 - 700GPa | 용인: | ± 0.001 mm |
| 서비스: | OEM 및 ODM | 초경가공: | 높은 내구성 |
| 압축강도: | ≥ 5000 MPa | 사업 유형: | 제조업자 |
제품 설명

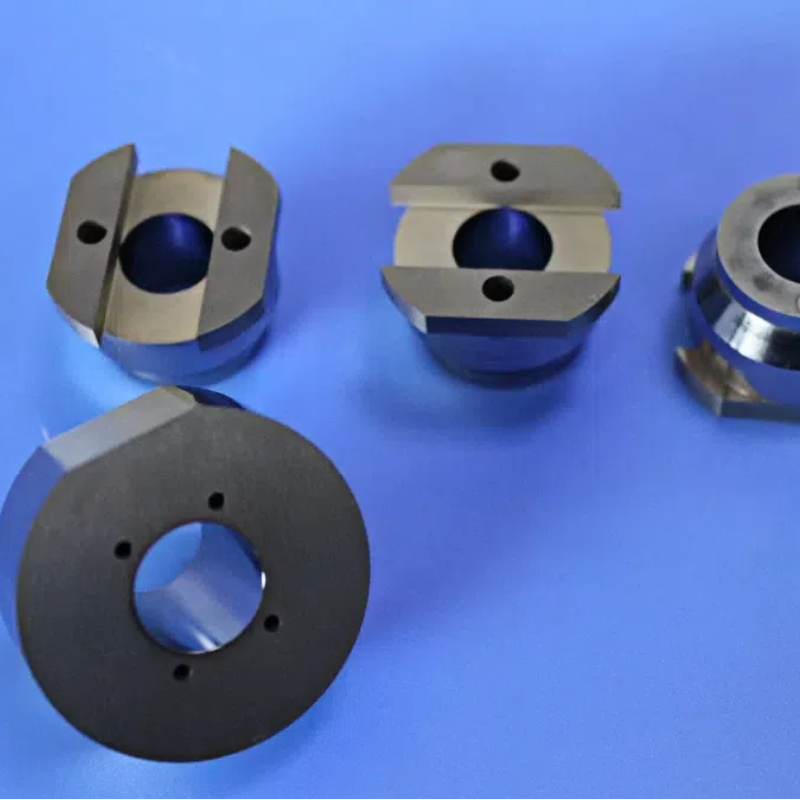

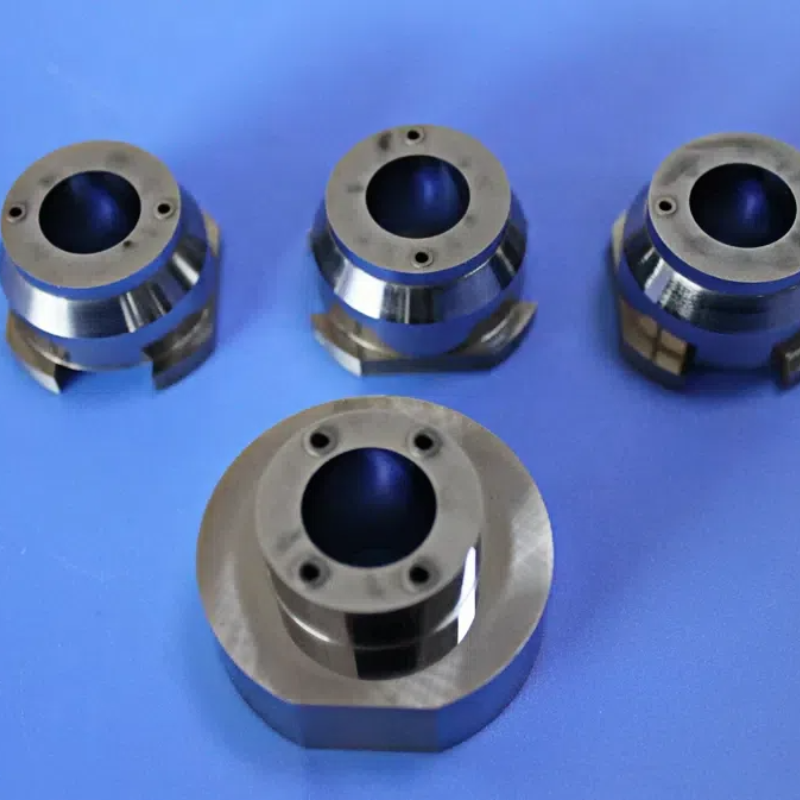

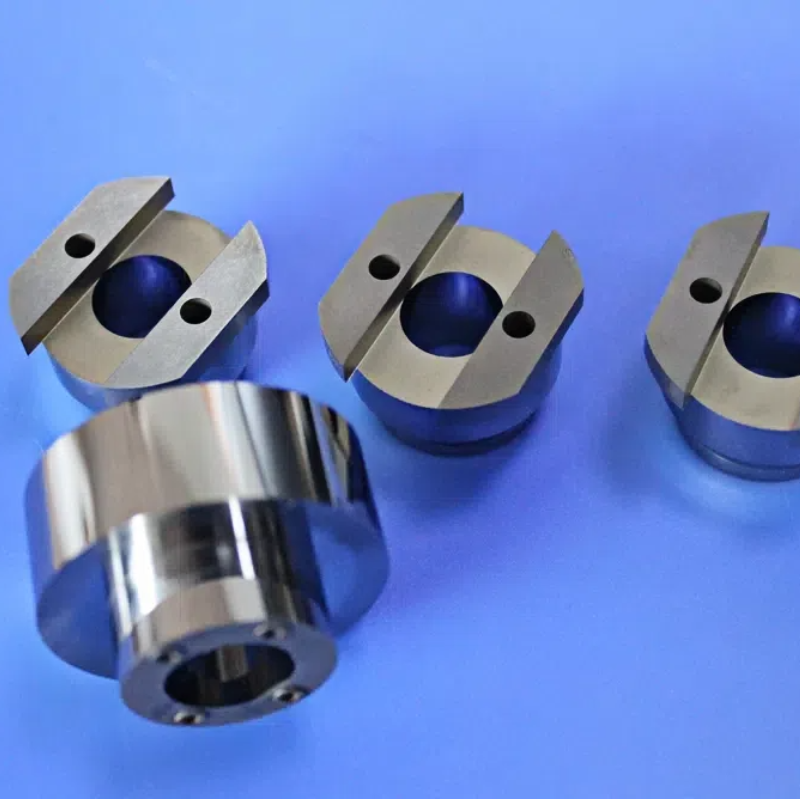

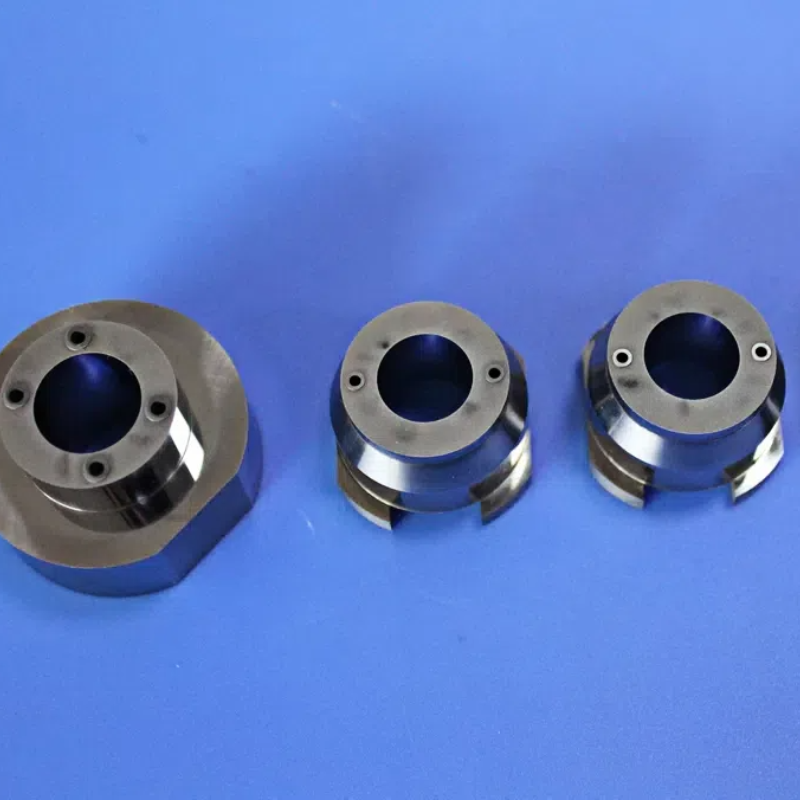

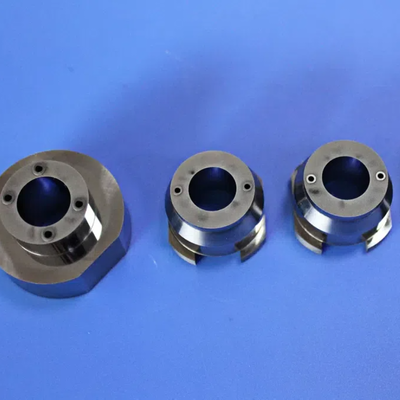

Our Non-Magnetic Tungsten Carbide Precision Hole Bases are engineered to serve as the ideal foundation for demanding applications. Manufactured from specialized WC-Ni (Tungsten Carbide-Nickel) alloy, these precision components deliver the essential combination of absolute magnetic neutrality, exceptional dimensional stability, and superior wear resistance for applications where standard steel or cobalt-bonded carbide cannot be used.
| Property | Typical Value | Benefit |
|---|---|---|
| Hardness | 90 - 92 HRA | Resists wear and deformation over millions of cycles |
| Density | 14.8 - 15.0 g/cm³ | High rigidity, excellent vibration damping |
| Thermal Expansion | 5.5 × 10⁻⁶ /K | Maintains precision across temperature variations |
| Compressive Strength | > 4000 MPa | Withstands high clamping forces without deformation |
Our manufacturing capabilities achieve exceptional accuracy for critical hole features:
| Industry | Application | Why Choose Our Hole Base |
|---|---|---|
| Semiconductor Manufacturing | Wafer stage mounting, mask aligner bases, metrology equipment fixtures | Zero magnetic interference with electron beams, wear-free precision over millions of cycles |
| Medical Imaging (MRI) | RF coil mounts, patient positioning system bases | Absolute non-magnetic property ensures image fidelity and patient safety |
| Aerospace & Defense | Guidance system component mounts, inertial navigation bases | Non-magnetic signature, exceptional stability under vibration and temperature variation |
| Precision Metrology | CMM fixture bases, laser interferometer mounts | Thermal stability maintains calibration accuracy |
| Scientific Research | Electron microscope stages, particle detector mounts | No magnetic field distortion, ultra-high vacuum compatible |
| Automated Assembly | Precision fixture bases, robotic end-effector mounts | Long-term accuracy without wear-induced drift |
