제품 상세 정보:
|
|
| 원래 장소: | 주조우 |
|---|---|
| 브랜드 이름: | Sanxin |
| 모델 번호: | SX1250 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 1 |
| 배달 시간: | 5-25days |
| 지불 조건: | L/C,T/T,Western 통합 |
|
상세 정보 |
|||
| 다른 이름: | 원프라멘 금속 막대 | 재료: | 100% 버진 텅스텐 및 코발트 |
|---|---|---|---|
| 서비스: | 이용 가능하여 맞춤화됩니다 | ISO: | K10,K20,K30 |
| 표면: | 높이 닦습니다 | 형태: | 바 |
| 시험 주문: | 받아들여질 수 있습니다. | 화확적 안정성: | 훌륭해요 |
| 강조하다: | 92HRA Tungsten Steel Piston Shaft,Chemical Resistance Tungsten Steel Piston Shaft,Chemical Stability Tungsten Steel Piston Shaft |
||
제품 설명

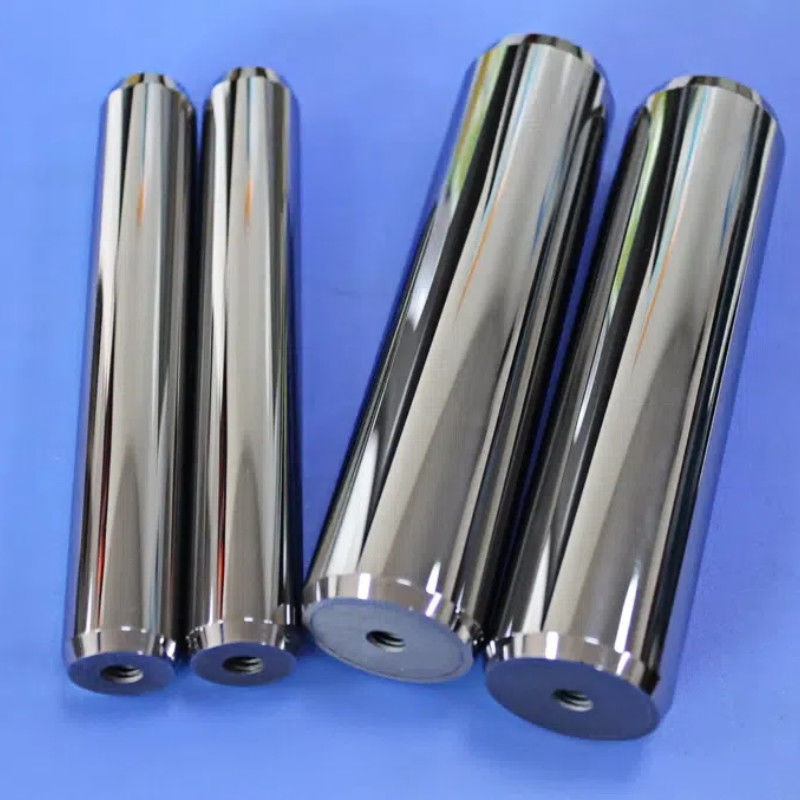

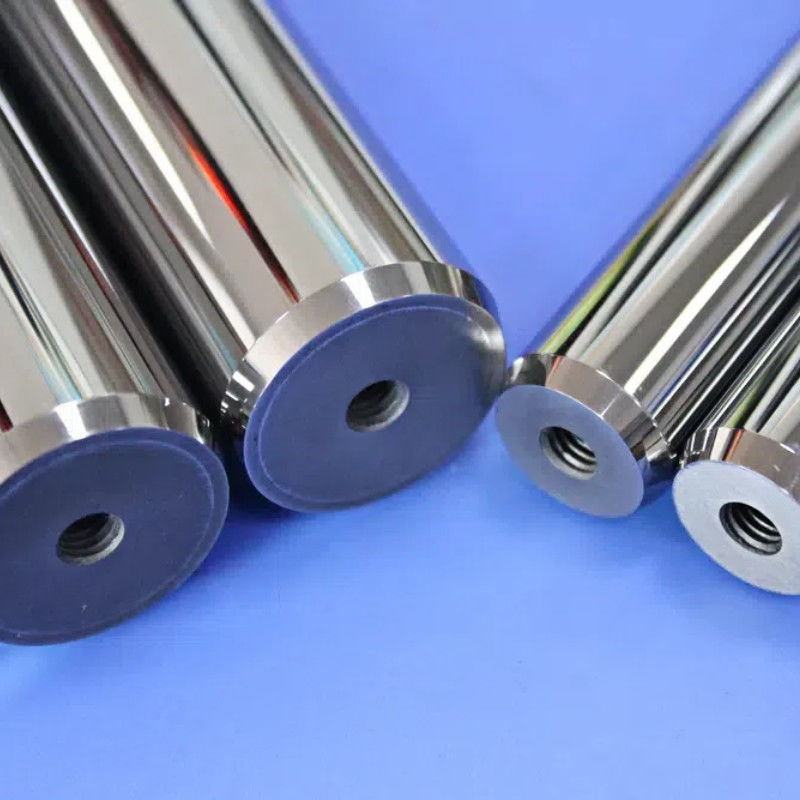

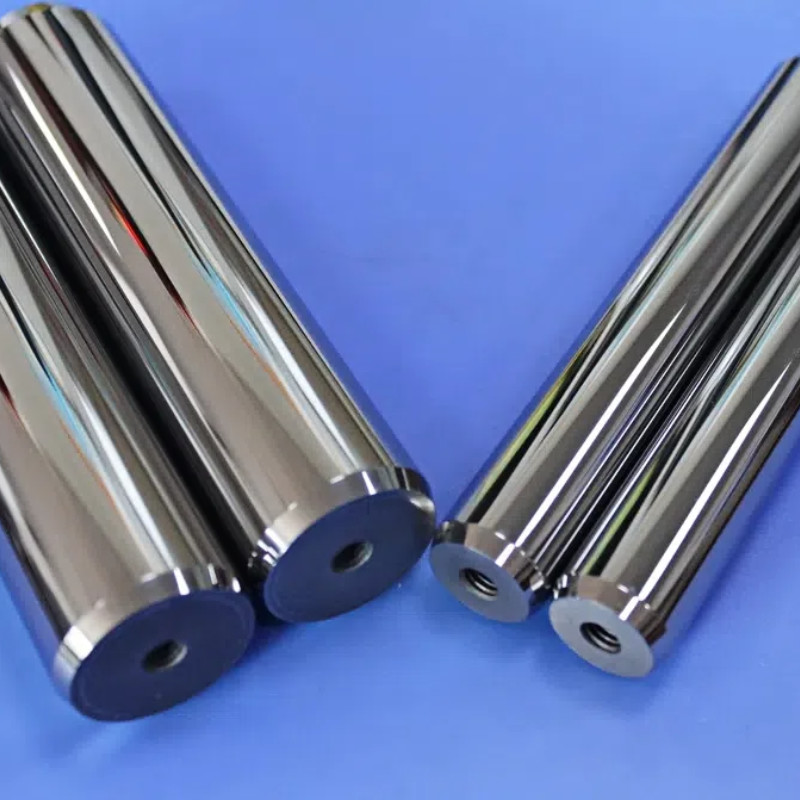

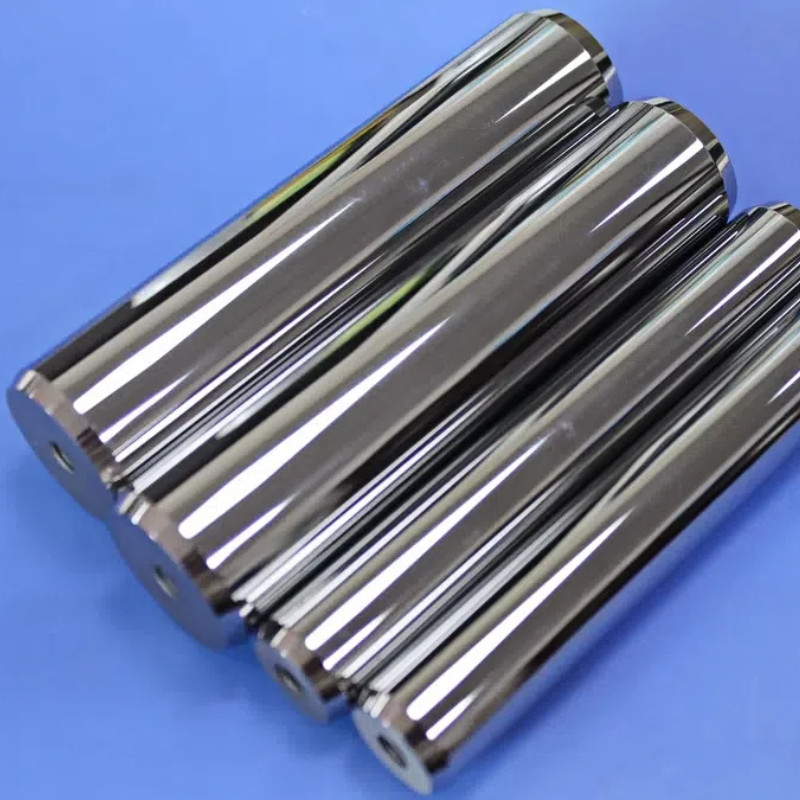

Anti-hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft
| Traditional alloy piston shafts | Disruptive value of this product |
| 65HRC hardness → micro deformation accumulation under high pressure | 92HRA hardness tungsten carbide → 97% reduction in deformation |
| Thread stress concentration → fracture risk ↑ | Rolling reinforced thread → 300% increase in fatigue life |
| Hydrogen sulfide corrosion → seal failure | Nano sealing surface → Leakage rate <0.001mL/min |
Material composition:
▸ Material composition: 94% WC + 6% Co nanopowder (D50=0.5μm)
▸ Sintering process: low-pressure SPS sintering (1200℃/50MPa)
▸ Grain size: 0.8-1.2μm (breaking the 3μm limit of traditional sintering)
▸ Matrix hardness: 92.5HRA
Applications:
► Energy exploration
- Shale gas fracturing compressor: Resistant to 10,000ppm H₂S intergranular corrosion
- Supercritical CO₂ compression: Resistant to 31MPa/110℃ phase change shock
► Chemical extreme environment
- Hydrofluoric acid reactor compressor: Resistant to HF vapor corrosion (＞200℃)
- Liquid chlorine delivery system: No brittle fracture at -34℃ low temperature
► Aerospace field
- Aerospace fuel booster pump: Stable operation at -196℃ in liquid oxygen environment
- Nuclear-grade helium circulation compressor: Resistant to neutron irradiation embrittlement
